TOPSKY

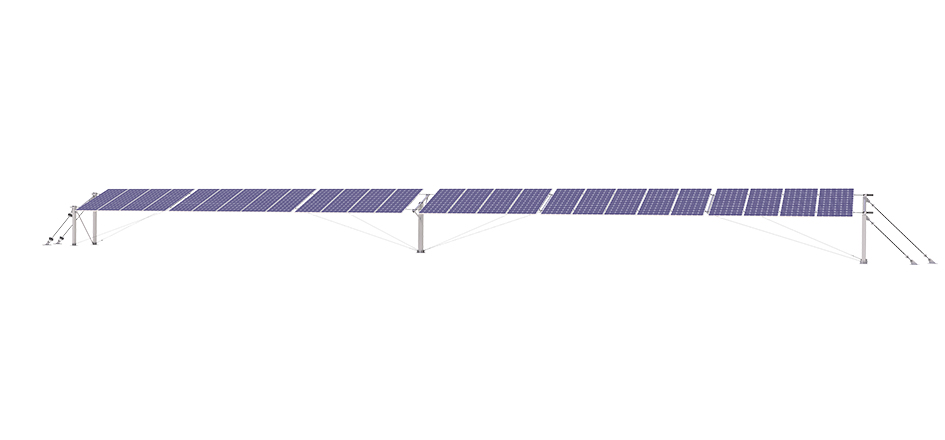

The TOPSKY adopts a single-layer cable structure, with a small number of support pile bases, simple construction, high land use efficiency, and easy to adapt to slopes exceeding 45 °. The TOPSKY series flexible bracket has the advantages of strong structural stability, strong terrain adaptability, and high installation efficiency, making it an ideal product solution for mountain photovoltaic power station projects.
Product parameters
Product features
  • Product type Single layer cable flexible support
  • Foundation type PHC/cast-in-place pile/cement foundation
  • Single span across ~ 20m
  • Ground coverage ratio ≥42%
  • Slope adaptability ≥45°
  • Minimum ground clearance 0.5m
  • Wind resistant design According to project requirements
  • Module inclination angle ≤35°
  • Steel cable strength 1860MPa
  • Module installation method Single block portrait installation
  • Standard and Certification 《Specifications for structural steel buildings》 AISC 360 《Minimum design loads for buildings and other structures》 ASCE 7 《Technical Specification for Cable Structures》 JGJ257-2012 《Wind tunnel test report》 TUV
    1、High clearance, long span, and strong terrain adaptability
    2、Strong wind resistance and structural stability
    3、Suitable for robust mountainous terrains, flexible layout, and high land utilisation
    4、High installation efficiency and convenient construction
